Wig Bubbles Machine
Integration of an Automated System for The Wig Bubbles Machine
Before integration of solenoid gas valves

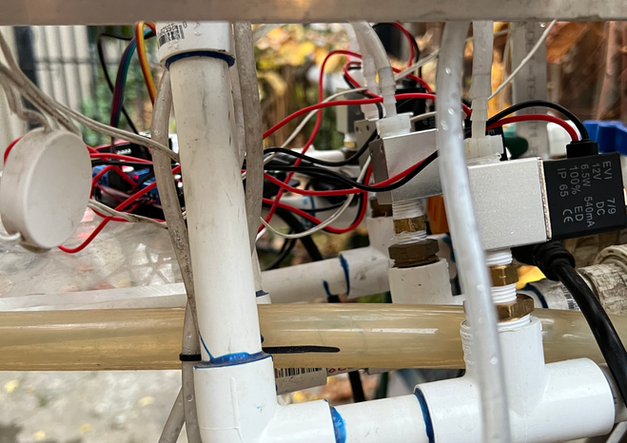

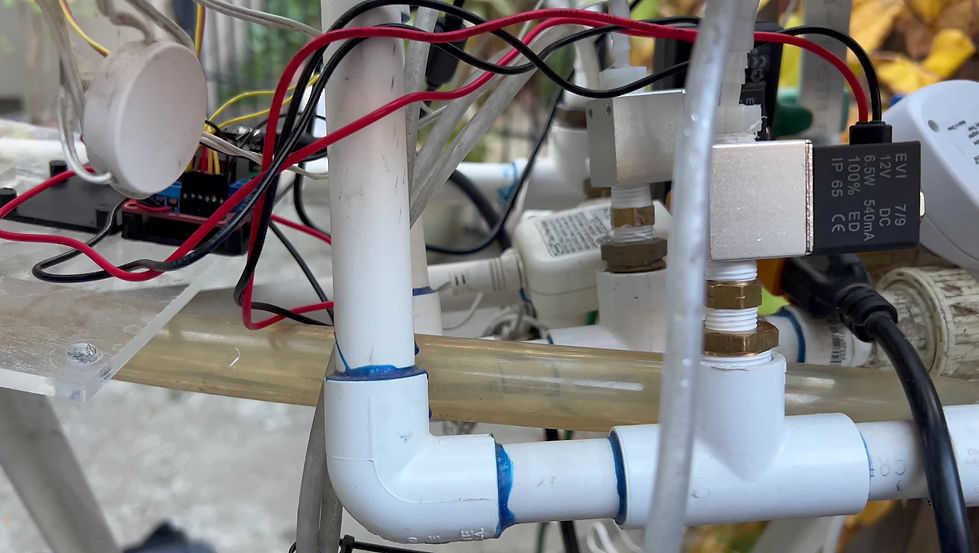

After integration of solenoid gas valves
Before integration of solenoid gas valves
Arduino NANO
IR Remote Signal Reciever
DC Motor Driver
LCD Display

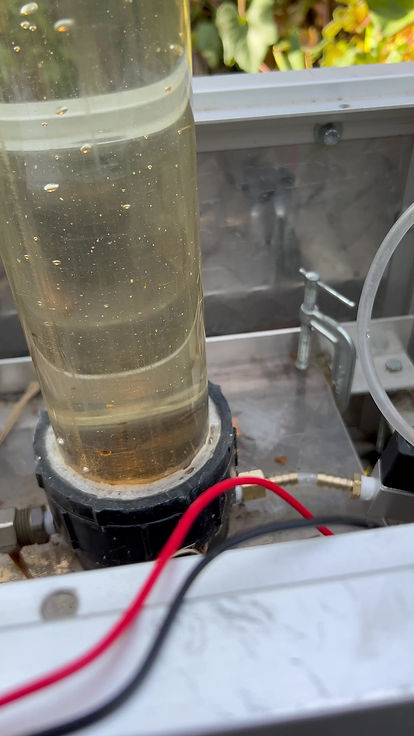

Bubbles before integration of solenoid valve

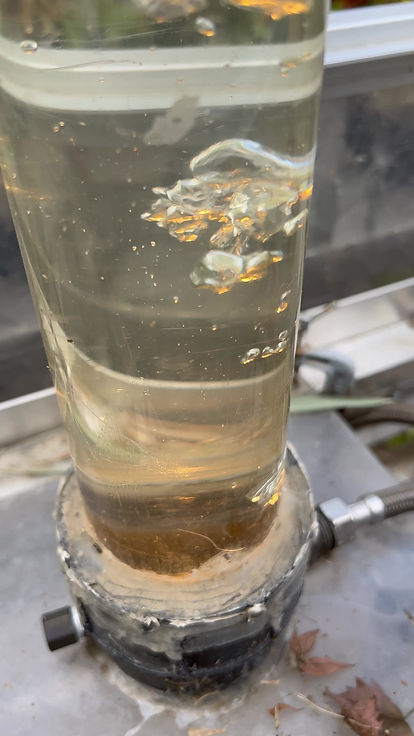

Bubbles after integration of solenoid valve

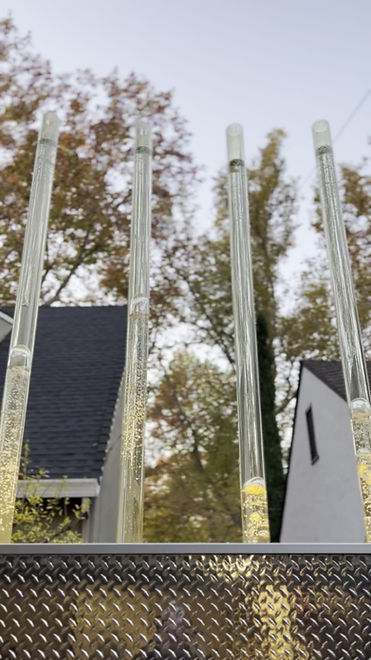

Finished Design of Automated System into the Wig Bubbles Machine
Half Integration Of The System With Sound
With the sound on you can hear the humm of the air pump in the backround along with the clicks of the solenoid gas valves opening to release pressurised air into the system.
Features
Here is a schematic of the electronic componets that control the release of gas in tube in the Wig Bubbles machine.
1
Low Cost Design
2
2 DC Motor Drivers
3
IR Remote Control
4
4 Solenoid Valves (20ms Activation Delay)
5
One 16X2 LCD Screen
6
Controled By An Arduino NANO
PCB Board Design
Here is a PCB board up grade form the previous prototype board that was used in the Wig Bubbles machine. The PCB holds an Arduino NANO, power jack and
